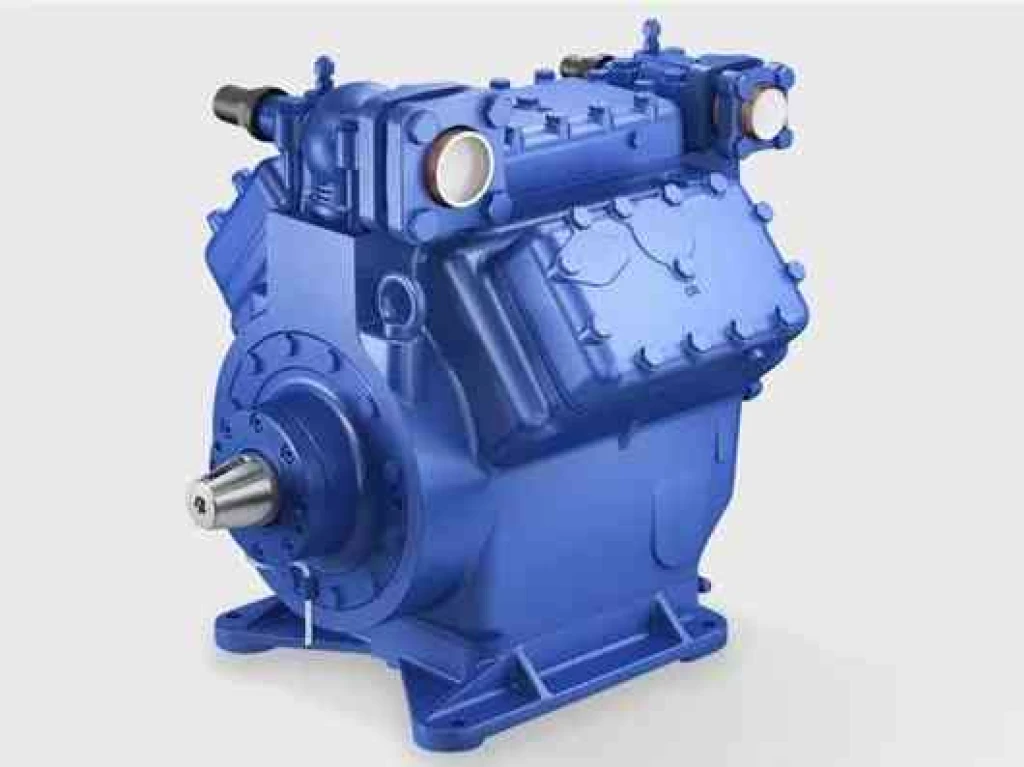

FX2-FX3-FX4-FX5

The F model series offers modern open compressors for external drive (via V-belt or clutch). Force transmission is by positive coning. Nearly all drive-related requirements are possible. The compressor design is very compact, robust and easy to handle, naturally with oil pump lubrication. Special features: • Driven via V-belt or direct clutch. • Suitable for conventional or chlorine-free HFC refrigerants.

Specifications:

Displacement min. / max. in m³/h at 1450rpm

• FX2 (10.5)
• FX3 (20.3)
• FX4 (40.5)
• FX5 (73.7)

FX14-FX16

The F model series offers modern open compressors for external drive (via V-belt or clutch). Force transmission is by positive coning. Nearly all drive-related requirements are possible. The compressor design is very compact, robust and easy to handle, naturally with oil pump lubrication.

Specifications:

Displacement min. / max. in m³/h at 1450rpm

• FX14 (101.4)
• FX16 (152.2)

4J..6F

BITZER is the way forward with the .2-Generation. One common compressor series for chlorine free HFC refrigerants and the HCFC’s. Due to the highly efficient and especially robust design the standard compressors have the design features for operation with chlorinated as well as with chlorine free refrigerants. The only difference in case of chlorine free substitutes is the use of Polyol-Ester oils approved by BITZER.

Specifications:

Displacement min. / max. in m³/h

• 4H.2 (73.6/88.8)
• 4G.2 (84.5/102.0)
• 6H.2 (110.5/133.4)
• 6G.2 (126.8/153.0)
• 6F.2 (151.6/183.0)

4N-T

BITZER is the way forward with the .2-Generation. One common compressor series for chlorine free HFC refrigerants and the HCFC’s. Due to the highly efficient and especially robust design the standard compressors have the design features for operation with chlorinated as well as with chlorine free refrigerants. The only difference in case of chlorine free substitutes is the use of Polyol-Ester oils approved by BITZER and a new shaft seal for 2T.2Y to 4N.2Y.

Specifications:

Displacement min. / max. in m³/h

• 4N.2 (56.1/67.7)
• 4T.2 (39.4/47.5)
