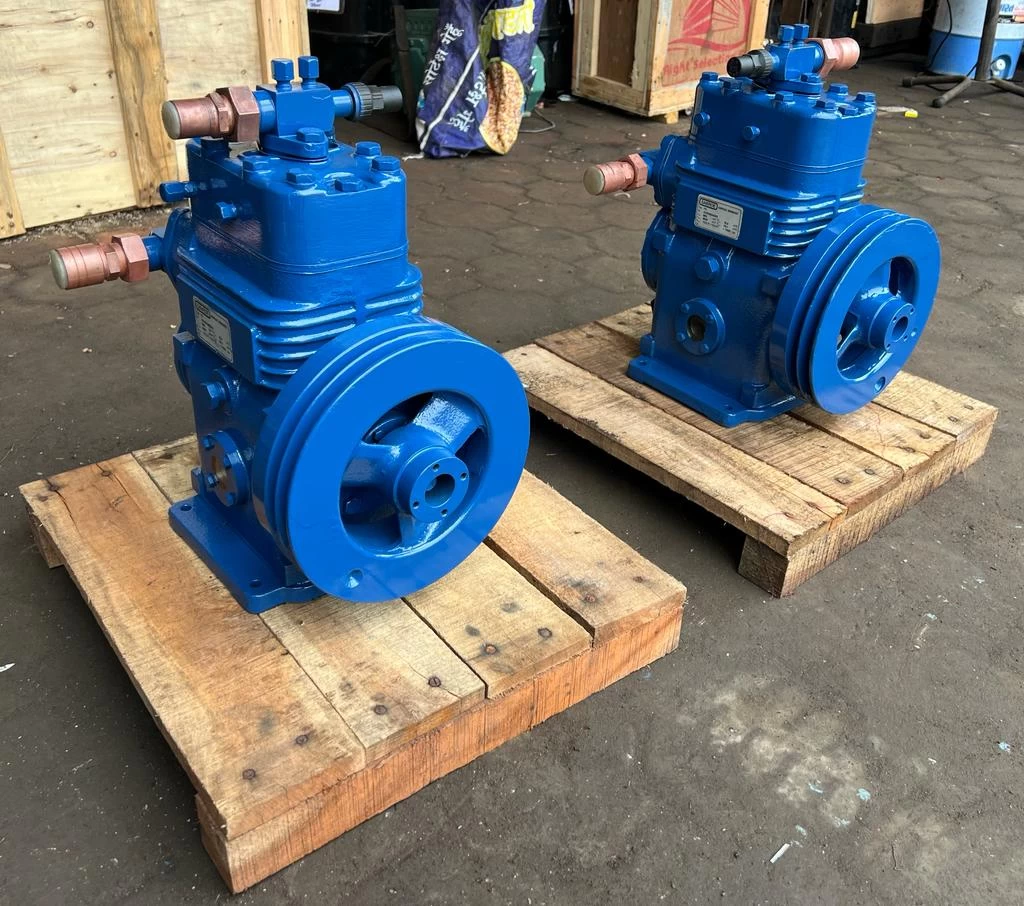

Bock FX3
Compressors
Used Bock FX3 / 960 RPM: 13,4 m3/h / 1800 RPM: 25,1m3/h / ND(LP) / HD(HP)=19/25bar
Compressors
Used Bock FX3 / 960 RPM: 13,4 m3/h / 1800 RPM: 25,1m3/h / ND(LP) / HD(HP)=19/25bar
Specifications
| No. | 8218 |
| Brand | Bock |
| Type | FX3 |
| Refrigerant | Freon |
| kW at +10ºC/+40ºC | 24,5* |
| kW at 0ºC/+40ºC | 17,4 |
| kW at -5ºC/+40ºC | 14,5 |
| kW at -10ºC/+40ºC | 11,9 |
| kW at -20ºC/+40ºC | 7,7 |
| kW at -30ºC/+40ºC | 4,6 |
| kW at -40ºC/+40ºC | 2,5 |
| Remarks | | *Capacity based of refrigerant R404A/R507* |
| Remarks || | R404a – R22 or other freon types |
| Sizes | 300x200x450mm (LxWxH) |
| 1360 | For more information refer to the pdf below page 17 |
| Amount in stock | 1 |
